Polarimeter [Product details]

Automatic Polarimeter / Saccharimeter SAC-i

Here at last - the product of our uncompromising pursuit of ultimate usability.
• FDA 21 CFR Part 11 Software Included in Standard Delivery
• Measurement stability in 12 seconds (4 seconds in the high-speed & consecutive measurement mode)
• Resolution of up to 3 decimal places
• Repeatability of ±0.003° Angle of Rotation and ±0.009°Z
• Up to 999 automatic consecutive measurements followed by average value display
• Sleep & timer feature to take measurement later at specified time
• Improved usability with the use of touch screen technology
• Connectivity to RX Digital Refractometers for automatic purity measurement
This SAC-i has been tested and approved by CONSECANA, the most eminent authority on sugar and ethanol production in the State of São Paulo, Brazil.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i
Cat.No. 5951
Range Angle of Rotation -89.9999 to +90.0000° or -360.0000 to +360.0000°
International Sugar Scale -259.0000 to +259.0000°
Resolution Angle of Rotation 0.0001° International Sugar Scale 0.0001°Z
Accuracy ①Angle of Rotation:
±0.002° (-5.0 to +5.0°)
±0.005° (-45.0 to -5.0°, +5.0 to +45.0°)
②International Sugar Scale:±0.015°Z (-130.0 to +130.0°Z)
Other ranges
①Angle of Rotation:±0.010°
②International Sugar Scale:±0.030°Z
* Checked by reading a standard quartz plate
Temperature correction range for ISS 10 to 40℃
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
Dimensions & Weight 60×36.5×21cm, 20.0kg
Included Accessories PolariSoft(Software)
Output Digital Printer DP-AD (sold separately), USB flash drive and PC - USB

SAC-i
Enlargement

  •
  •


SAC-i Package information

Special Package for Sugar industry SAC-i Type A Temperature Control

ATAGO has prepared 2 different SAC-i packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The SAC-i comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the SAC-i is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i Type A Temperature Control
Cat.No. 5961
Package Contents • SAC-i
• Jacketed flow tube with funnel
(200mm - approximate volume 15mL)
Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately.

SAC-i
Enlargement

  •


Special Package for Sugar industry SAC-i Type B without Temperature Control

ATAGO has prepared 2 different SAC-i packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The SAC-i comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the SAC-i is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i Type B without Temperature Control
Cat.No. 5962
Package Contents • SAC-i
• Unjacketed flow tube with funnel
(200mm - approximate volume 15mL

SAC-i
Enlargement

  •


Special Package for Pharmaceutical industry SAC-i Type C Temperature Control

Both SAC-i packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C5, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i Type C Temperature Control
Cat.No. 5963
Package Contents • SAC-i
• Jacketed flow tube (100mm)
• Quartz Control Plate (8°, 17°, or 34°)
• Digital printer DP-AD
• Printer paper for DP-AD
• Ribbon cassette for DP-AD
• Circulating Constant Temperature Bath 60-C5

SAC-i
Enlargement

  •


Special Package for Pharmaceutical industry SAC-i Type D without Temperature Control

Both SAC-i packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C4, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i Type D without Temperature Control
Cat.No. 5964
Package Contents • SAC-i
• Quartz Control Plate (8°, 17°, or 34°)
• Digital printer DP-AD
• Printer paper for DP-AD
• Ribbon cassette for DP-AD

SAC-i
Enlargement

  •


Automatic Polarimeter / Saccharimeter SAC-i 589/882

High Performance Sugar Analysis, Now Easier Than Ever.

It has become common that dark color - raw sugar samples are measured at 882nm without decolorization treatment.
SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model SAC-i 589/882
Cat.No. 5952
Measurement Readings Angle of Rotation
International Sugar Scale
Specific Rotation
Concentration
Purity
User scale
Angle of Rotation (Temperature Compensation of Quartz Plate)
Temperature (°C / °F)
Range Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000°
International Sugar Scale : -259.0000 to +259.0000°Z
Resolution Angle of Rotation : 0.0001°
International Sugar Scale : 0.0001°Z
Accuracy 589nm
①Angle of Rotation:±0.005° (-45.0 to +45.0°)
②International Sugar Scale:±0.015°Z (-130.0 to +130.0°Z)
Other ranges
①Angle of Rotation:±0.010°
②International Sugar Scale:±0.030°Z
* Checked by reading a standard quartz plate

882nm
①Angle of Rotation:±0.005° (-19.3 to +19.3°)
②International Sugar Scale:±0.015°Z (-130.0 to +130.0 °Z)
Other ranges
①Angle of Rotation:±0.010°
②International Sugar Scale:±0.070°Z
* Checked by reading a standard quartz plate
Temperature compensation 10 to 40℃
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
882nm(infrared nearby)
Dimensions & Weight 60×36.5×21cm, 20.0kg
Included Accessories PolariSoft(Software)
Output Digital Printer DP-AD (sold separately),
Output method : RS-232C (9 pin D-Sub male connector)
USB flash drive and PC - USB

SAC-i 589/882
Enlargement

  •

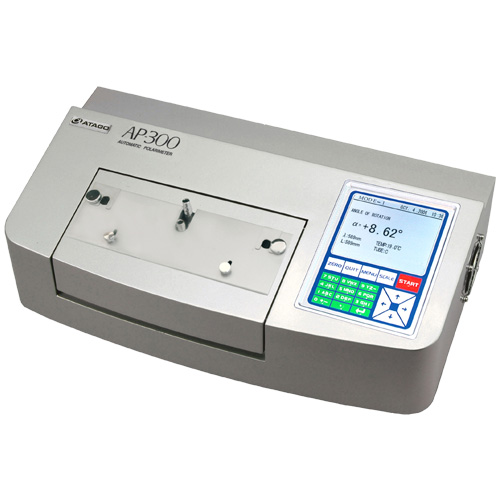

Special Package for Sugar industry AP-300 Type A Temperature Control

ATAGO has prepared 2 different AP-300 packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The AP-300 comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the AP-300 is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.

Specifications
Model AP-300 Type A Temperature Control
Cat.No. 5296
Package Contents • AP-300
• Jacketed flow tube with funnel
(200mm - approximate volume 15mL)
• Inner Lid (For Tube 200mm) : RE-76017
Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately.

AP-300
Enlargement

  •


Special Package for Sugar industry AP-300 Type B without Temperature Control

ATAGO has prepared 2 different AP-300 packages for the sugar industry. Users have a choice between 2 types: Temperature Controlled Type A and Temperature Compensation Type B. The AP-300 comes with Automatic Temperature Compensation for International Sugar Scale. A Circulating Constant Temperature Bath is not necessary when the temperature compensation function is used or when the AP-300 is used in a temperature-controlled room.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model AP-300 Type B without Temperature Control
Cat.No. 5297
Package Contents • AP-300
• Unjacketed flow tube with funnel
(200mm - approximate volume 15mL
• Inner Lid (For Tube 200mm) : RE-76017

AP-300
Enlargement

  •


Special Package for Pharmaceutical industry AP-300 Type C Temperature Control

Both AP-300 packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C5, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model AP-300 Type C Temperature Control
Cat.No. 5294
Package Contents • AP-300
• Jacketed flow tube (100mm)
• Inner Lid (For Tube 100mm) : RE-76016
• Quartz Control Plate (8°, 17°, or 34°)
• Digital printer DP-AD
• Printer paper for DP-AD
• Ribbon cassette for DP-AD
• Circulating Constant Temperature Bath 60-C5

AP-300
Enlargement

  •


Special Package for Pharmaceutical industry AP-300 Type D without Temperature Control

Both AP-300 packages include a GMP and GLP compliant Quartz Control Plate for calibration and a Digital Printer DP-AD (regular paper) for data recording. Choose between Package C, which includes a Constant Temperature Circulating Bath 60-C4, or Package D without temperature control.
This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years

Specifications
Model AP-300 Type D without Temperature Control
Cat.No. 5295
Package Contents • AP-300
• Quartz Control Plate (8°, 17°, or 34°)
• Digital printer DP-AD
• Printer paper for DP-AD
• Ribbon cassette for DP-AD

AP-300
Enlargement

  •


Portable Polarimeter Po-1

World's Smallest and Speedy Portable Polarimeter.
No observation tube necessary. Only 3ml volume is required for measurements.

Specifications
Model Po-1
Cat.No. 5050
Measurement item Angle of Rotation
※Angle of rotation conversion to 100mm and 200mm optical path length., Specific Rotation,
Concentration,Temperature
Range Angle of Rotation:
These ranges are measured by the device’s 20mm light path.
These are convertible to below ranges:
-25.0 to +25.0° with a 100mm observation tube
-50.0 to +50.0° with a 200mm observation tube
Temperature:5.0 to 40.0℃
Accuracy Angle of Rotation(°): ±0.1°(at 20℃)
Wavelength 589nm
Measurement Time About 7 seconds
Power Supply Size AAA alkaline battery × 4
International Protection Class IP67
Dimensions & Weight 160×101×38mm,325g (main unit only)

Options

Po-1
Enlargement

  •


Polarimeter POLAX-2L

Polarimeter, which is known as an optical rotation meter, is an instrument to measure optical rotation of "optically active matter" such as saccharin, ascorbic acid and sodium glutamate.

Specifications
Model POLAX-2L
Cat.No. 5223
Range Angle of rotation : -179.95° to +180.00°
International sugar scale : -130.0°Z to +130.0°Z
Resolution Angle of rotation : 0.05°
International sugar scale : 0.1°Z
Accuracy Angle of rotation : ±0.10°
International sugar scale : 0.3°Z
Temperature compensation 5 to 40°C
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
Dimensions & Weight 43×22×30cm, 10.3kg
(Main Unit only)
Included Accessories Observation tubes : 100mm tube and 200mm tube / each



POLAX-2L
Enlargement

  •


Circulating Constant Temperature Bath 60‎-C5

The 60-C5 is an external circulation type constant temperature water tank provided with a thermo-module. The temperature can be set in the range of 10 to 60°C and the unit is perfectly suited for connection with a refractometer.An upgraded version of the 60-C4 model, featuring an increased tank capacity of 1.0L and an improved resolution of 0.1℃ which makes it even easier to use.

Specifications
Model 60‎-C5
Cat.No. 1923
Tank Capacity 1.0 lit
Resolution 0.1℃
Temperature Setting Range 10 to 60°C (water)
Temp.control PID control method using a thermo-module
Dimensions & Weight 20.4×33.6×28.9cm, 9.0kg
Flow Rate 6 lit / min
Polarimeter , ATAGO
