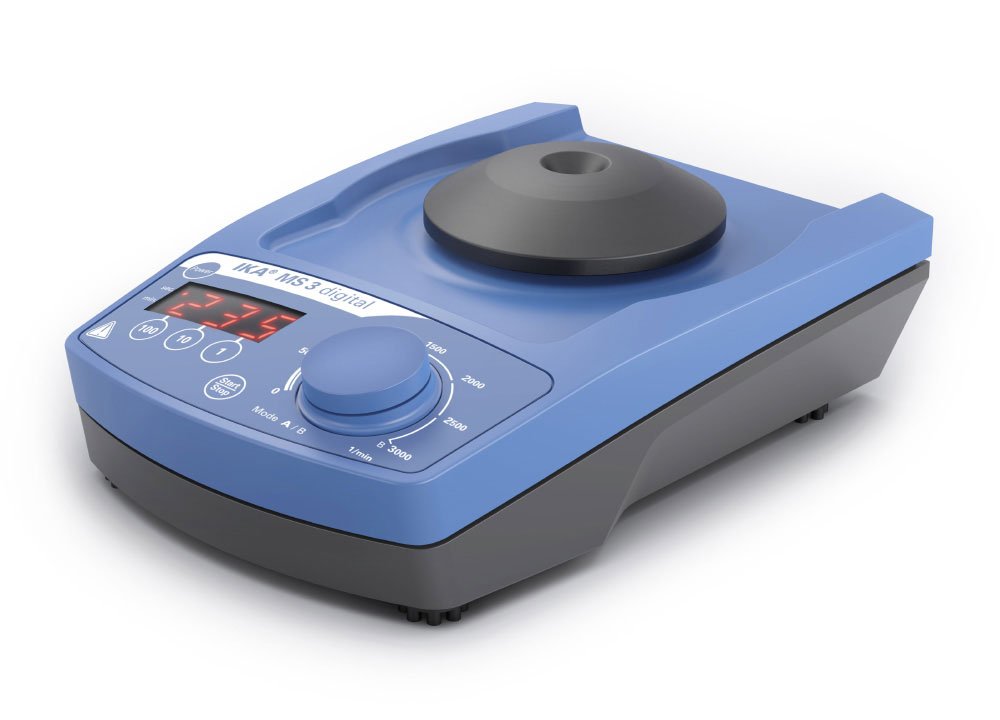

MS 3 digital

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

• Wide range of attachments
• Attachment detection
• Timer with countdown function
• Continuous or touch operation (with standard attachment)
• Two operating modes:

Mode A (safe mode with attachment detection)
the maximum speed of 3.000 rpm is only reached with the standard attachment in
touch mode. When using other attachments the speed is limited to 1.300 rpm.
Mode B (without attachment detection)
A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

• Stable in all speed ranges
• Sturdy zinc die cast casing

Scope of delivery

• MS 3 digital
• MS 3.1 Standard attachment
• MS 3.3 Universal attachment
• MS 3.4 Microtiter attachment
• MS 1.21 One-hand insert
• MS 1.32 Test tube insert

Technical Data

• Type of movement	orbital
  Shaking stroke	4.5 mm
  Permissible shaking weight (incl. attachment)	0.5 kg
  Motor rating input	10 W
  Motor rating output	8 W
  Permissible ON time	100 %
  Speed min (adjustable)	200 rpm
  Speed range	0 - 3000 rpm
  Speed display	scale
  Timer	yes
  Timer display	7 segment LED
  Time setting range	1/60 - 999 min
  Operating mode	timer and continuous operation
  Touch function	yes
  Working with microtiter plates	yes
  Number of microtiter plates	1
  Dimensions (W x H x D)	148 x 63 x 205 mm
  Weight	2.9 kg
  Permissible ambient temperature	5 - 40 °C
  Permissible relative humidity	80 %
  Protection class according to DIN EN 60529	IP 21
  Voltage	100 - 240 V
  Frequency	50/60 Hz
  Power input	20 W
  DC Voltage	24 V=
  Current consumption	800 mA

IKA MS 3 Basic Vortex Mixer

The MS 3 Basic vortex mixer is suitable for small shaking tasks with small vessels and microtiter plates. Attachment recognition and two operating modes offer versatility. A wide range of attachments are available.

Touch operation mode with the standard attachment allows maximum speed of 3000 rpm. All other attachments limit the speed to 1300 rpm. Continous operation does not utilize attachment detection and spins all attachments at 3000 rpm. Stable shaking is possible across all speed ranges with the MS 3 Basic. It is sturdy and durable and features a zinc die cast casing.

IKA MS 3 Basic Vortex Mixer Features

• Compact design with small footprint
• Ideal for small shaking tasks with small vessels and microtiter plates
• Wide range of attachments available
• Attachment recognition (touch operation only)
• Stable at all speed ranges
• Durable zinc die cast casing

Technical Data

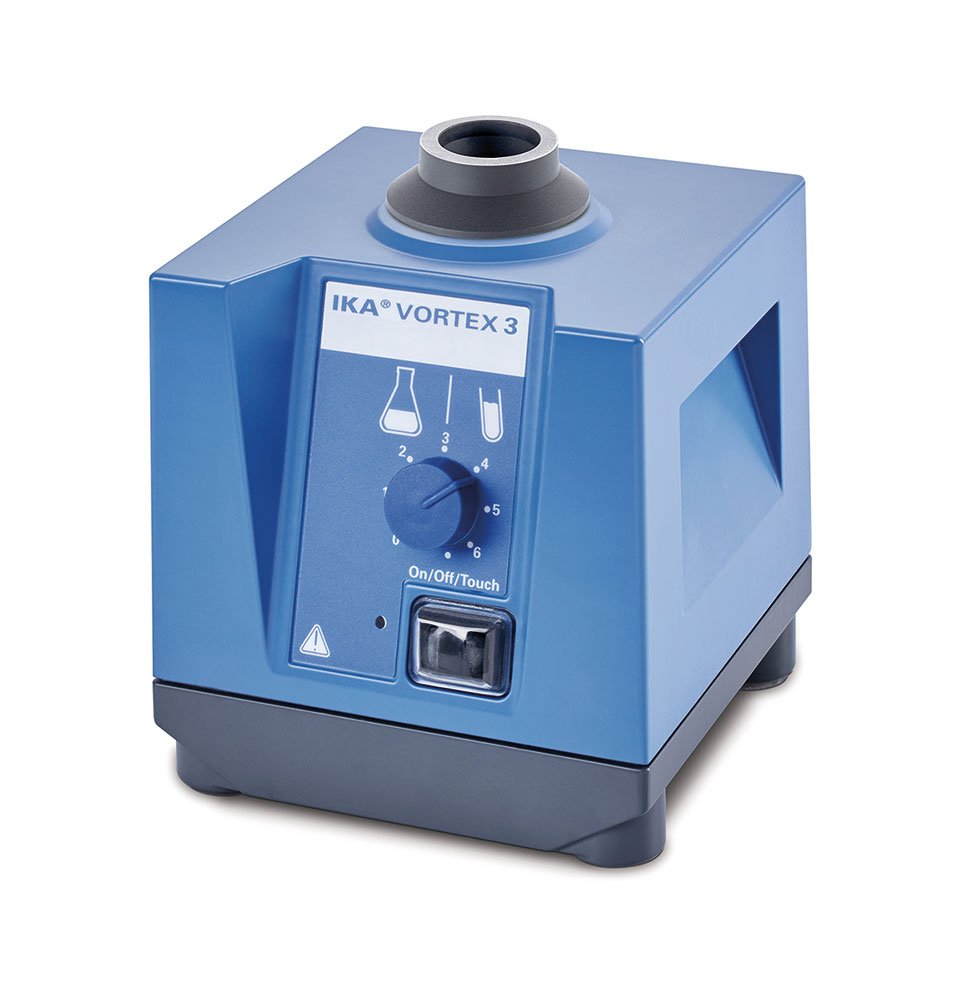

VORTEX 3

• Wide speed range, infinitely adjustable
• Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
• Attachments securely click onto appliance in any position
• Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks
• Sturdy metal zinc die cast casing
• Compact design
• Short-time operation activated by pressing attachment (touch function)
• Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
• Eccentric with ball bearings
• Suitable for continuous operation with low self heating thanks to self ventilation of motor

• VORTEX 3
• VG 3.1 Standard attachment

Technical Data
