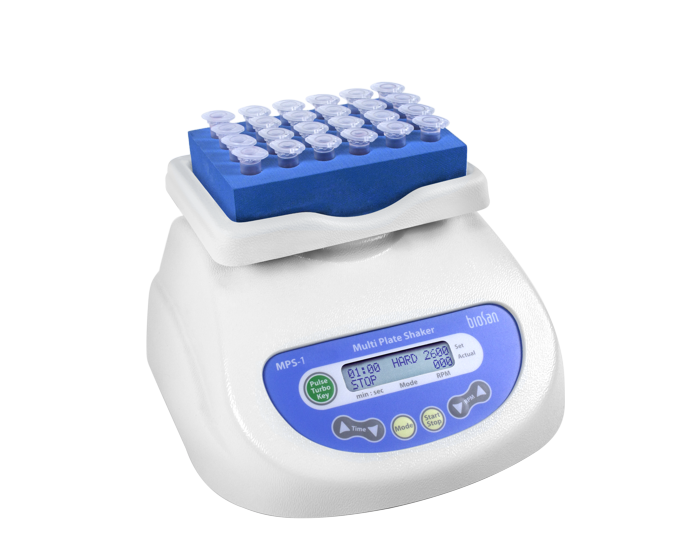

High–Speed Multi Plate Shaker


Description
The shaker is compact and user–friendly. The shaker is ideal for personal use.

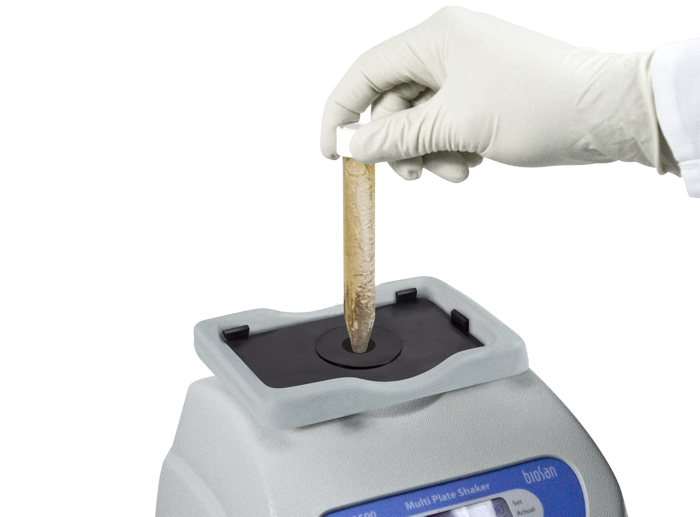

MPS-1 features a head for vortexing a single tube.
Specification
| Mixing speed control range |
300–3,200 rpm (100 rpm increment) |

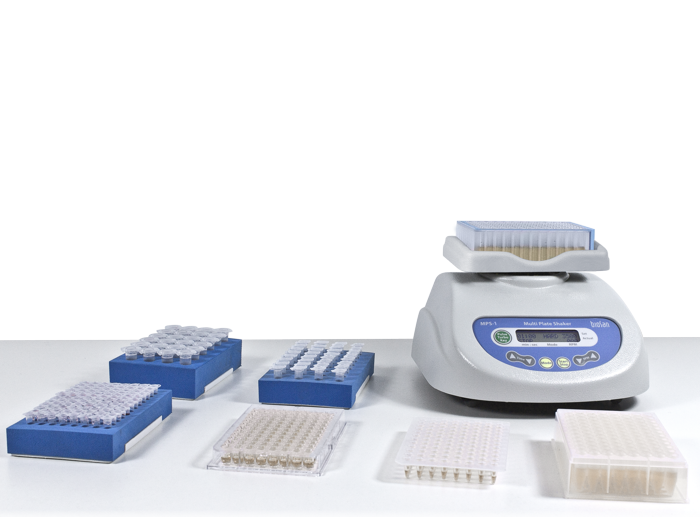

| Universal platform for deepwell plates, 96-well microtest plates (U, V or flat bottomed), 384-well microtest plates |
+ |
| Types of mixing presets: |
-> |
| VORTEX |
3,200 rpm |
| HARD |
2,600 rpm |
| MEDIUM |
1,800 rpm |
| SOFT |
1,000 rpm |
| CUSTOM |
adjustable rpm |
| Digital time setting |
0–60 min (15 s increment) / non–stop |
| Timer sound signal |
+ |
| Maximum continuous operation time |
8 hrs |
| Orbit |
3 mm |
| Acceleration time to maximum speed |
5 sec |
| Maximum load |
0.3 kg |
| Features a Pulse Mode mixing function |
+ |
| Features a Vortex function |
+ |
| Noise level, not more |
65 dB |
| Overall dimensions (W×D×H) |
225 × 215 × 150 mm |
| Weight |
5.1 kg |
| Input current/power consumption |
12 V, 800 mA / 10 W |
| External power supply |
Input AC 100–240 V 50/60 Hz; Output DC 12 V |

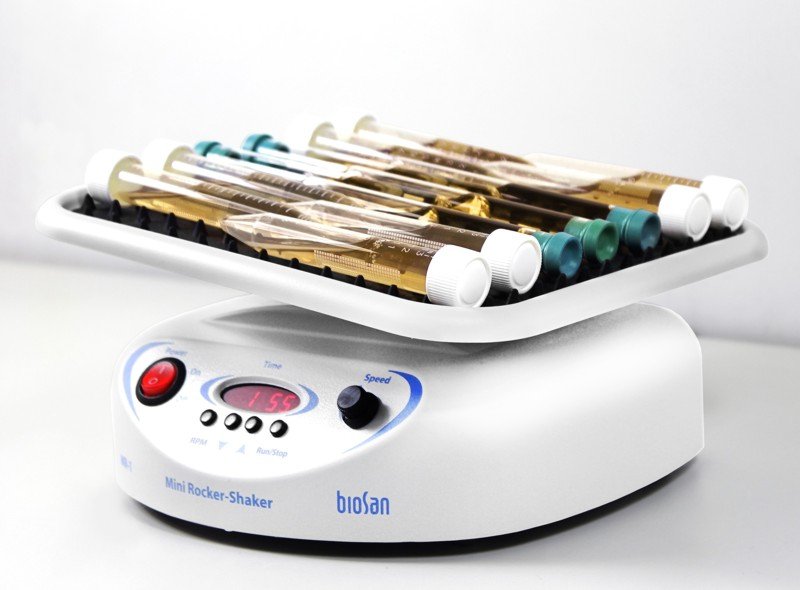

Mini-Rocker Shaker

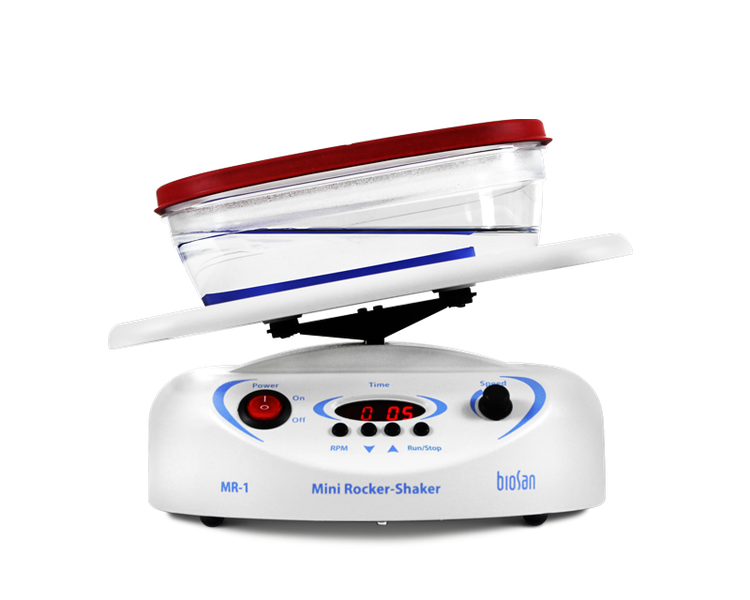

Mini Rocker–Shaker MR-1 provides regulated gentle rocking motion of the platform and is ideal for mini gel destaining after electrophoresis, conducting Northern, Southern and Western blot analysis.
Shaker is a compact, noiseless device designed for personal use. The use of direct drive and brushless motor allows continuous mixing up to 7 days and ensures reliable, trouble-free operation for more than 2 years.
Non–slip, temperature resistant, silicone mat located on the rocker’s platform provides stable position for vessels during shaking. Optional dimpled PDM mat fixes tubes of different sizes.
Specification
| Mixing frequency range |
1–30 oscil/min |
| Digital time setting |
1 min-24 hrs / non-stop |
| Fixed tilt angle |
7° |
| Direct drive mechanism |
+ |
| Maximum continuous operation time |
168 h |
| Display |
LED |
| Maximum load |
1 kg |
| Non-slip silicone mat is supplied as standard |
+ |
| Platform working area |
215x215 mm |
| Overall dimensions (W×D×H) |
220x205x120 mm |
| Weight |
2.1 kg |
| Input current/power consumption |
12 V, 320 mA / 3.8 W |
| External power supply |
Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
