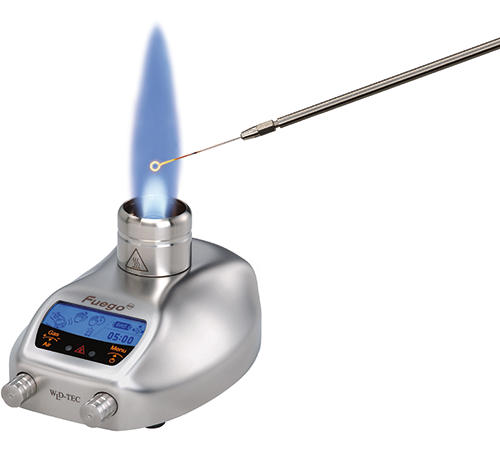

Automatic Burner WLD - TECH

Technology

Microprocessor, illuminated graphic display with acoustic signals as operating aids

6 Programs
IR-Sensor:


Foot pedal:


Button:

Temperature regulation:

Start-Stop with timer, 1 sec - 2 h
Auto-Off with timer, 0 sec - 2 h

Standard (flame during pressed foot pedal)
Start-Stop with timer, 1 sec - 2 h

Start-Stop with timer, 1 sec - 2 h

with timer, 1 sec - 2 h
temperature range from +35 °C to +350 °C

Safety features
Safety Control System (SCS)
with gas safety cut off:



Residual heat display:

Zero-Pressure shut-off:

ignition and flame control, temperature monitor
burner head clogging and assembly monitor (BHC)
automatic unit switch off after 1 - 2h, adjustable

indicated a hot burner head

end of work procedure to lower the pressure in the supply hose

Comfort functions

cooling reminder
gas consumption display for gas cartridges

Gas supply & consumption
Gas connection:

Gas types:


Connected load:

Continuous cartridge operation:

1/4” left with gas filter

II2ELL3B/P: natural gas E/LL,18 - 25 mbar
liquid gas, 47,5 - 57,5 mbar

70 g/h liquid gas; 95 l/h natural gas (LL)

CV 360 - 40 min,
Express 444 - 50 min,
CG 1750 - 150 min,
C 206 - 170 min,
CP 250 - 210 min,
CV 470 - 370 min

Temperatures
Flame temperature:


Temperature threshold level:

1350 °C on liquid gas
1300 °C on natural gas (E)

1.0 kW liquid gas, 1.0 kW natural gas

Electrical
IR-Sensor detection range:
DoubleClick IR-Sensor:

Power consumption:
Switching power supply:

5 - 50 mm, adjustable
time range 0.5 - 2.5 sec (adjust. / disengageable)

2 VA (stand by max. 0.1 VA)
100-240V / 50/60Hz / max. 0.3 A; 9V DC / 1.3A
Level 6 (stand by power consumption max. 0.1W)

Mechanical
Casing & operating controls:
Burner head:
Cover of burner shaft:

Measurements (w x h x d):
Weight:

stainless steel / glass, UV and solvent resistant
removable and decomposable, stainless steel
Ø 23 mm, with drains

103 x 49 x 130 mm
700 g

Licenses
DIN-DVGW Reg.-No.:
CE:
EU guidelines:

NG-2211AS0167
EN 61326-1, EN61010-1, EN61010-2-010
2014/30/EU, 2014/35/EU, 2011/65/EU
